We constantly improve and upgrade technologies for the high-efficiency manufacturing process of Factory Directly Northern American Market Dustproof Dimmable 4Ft 100W 150W 120W 120-277V 347V Led Linear High Bay With Sensor. Technologies are applied, which has been proved to be successful.Widely used in the field(s) of , the product is valuable and worth the investment.
Combining the efforts of all our staff and keeping up with the trend, Shenzhen Ruidisi Lighting Co.,Ltd. has developed the version of Factory Directly Northern American Market Dustproof Dimmable 4Ft 100W 150W 120W 120-277V 347V Led Linear High Bay With Sensor . It is borne with the updated features and is expected to create values and benefits for customers. The continued success of our product has been built upon consistent and competitive pricing, quality workmanship, quick response time and outstanding customer service. With years of familiarity and expertise in this work area, Shenzhen Ruidisi Lighting Co.,Ltd. has evolved as an affluent manufacturer and supplier in the market, and there is a great possibility that the company will have a better development in the future.
Color Temperature(CCT): | 3500K (Warm White) | Lamp Luminous Efficiency(lm/w): | 135 |
Color Rendering Index(Ra): | 80 | Support Dimmer: | Yes |
Lighting solutions service: | Project Installation | Lifespan (hours): | 50000 |
Working Time (hours): | 50000 | Input Voltage(V): | AC120-277V / 347-480V |
Lamp Luminous Flux(lm): | 29250 | CRI (Ra>): | 80 |
Working Temperature(℃): | -25 - 50 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Iron | IP Rating: | Ip44 |
Place of Origin: | Guangdong, China | Brand Name: | RDS |
Model Number: | RDS-HB5 | Application: | Warehouse, Indoor stadium, warehouse, supermarket, shopping center |
Light Source: | LED | Warranty(Year): | 5-Year |

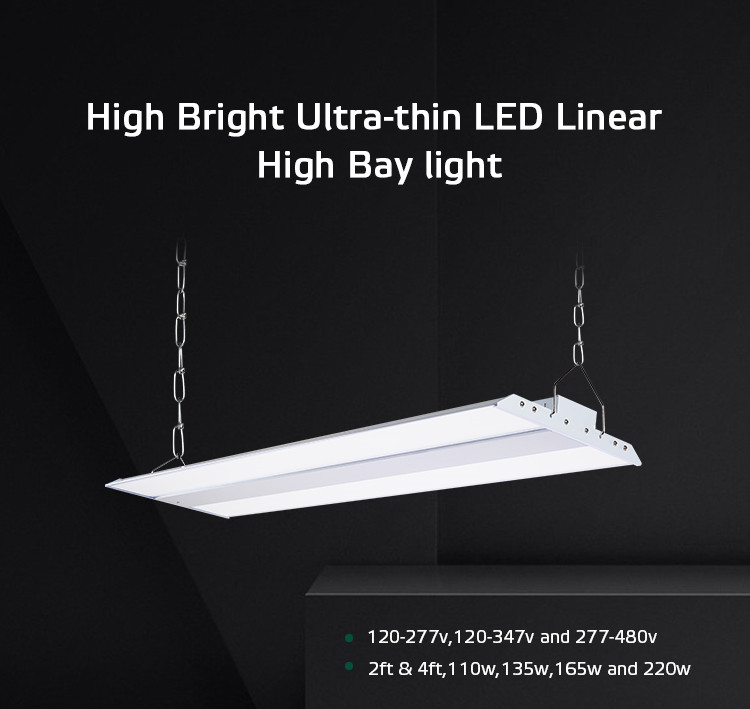

Control Mode: | Switch Control | Product Name: | Led Linear High Bay With Sensor |
Power: | 110w/135W/165w/220w/300w/320w | Size: | 2ft , 4ft |
LED Driver: | 1-10v dimmable driver | Beam angle: | 120 Degree |

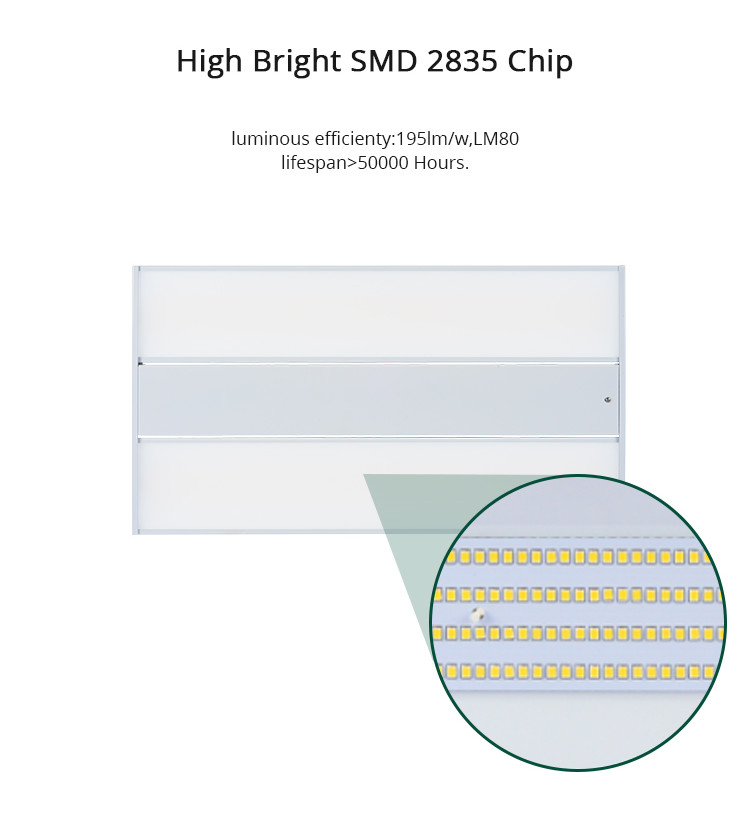

Motion Sensor: | Microwave sensor (optional) | LED Light Source: | SMD 2835 |

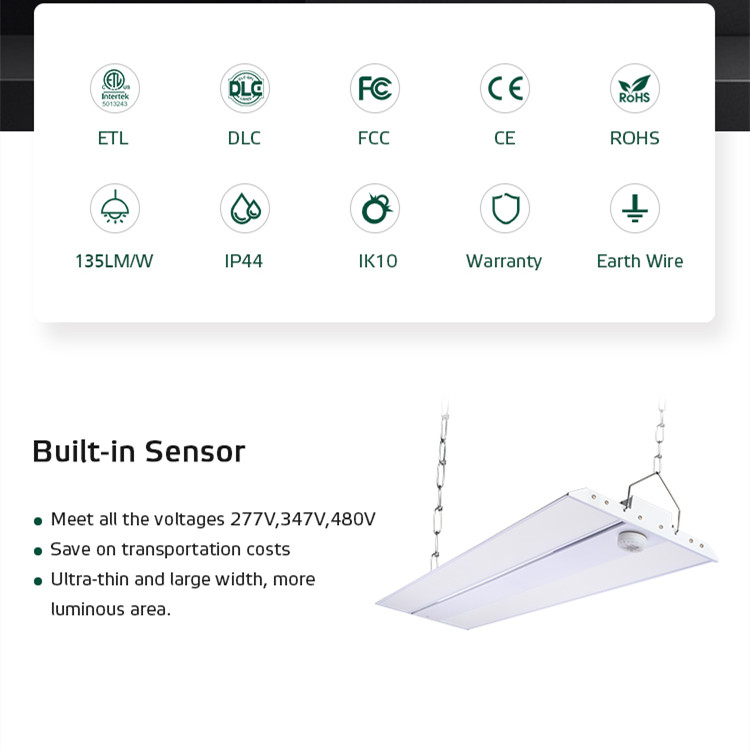

Certification: | ETL,CETL.DLC.FCC |
Item No | RDS-HB5-110W-2FT | RDS-HB5-135W-2FT | RDS-HB5-165W-2FT | RDS-HB5-165W-4FT | RDS-HB5-220W-4FT | ||||
Input Power | 110W | 135W | 165W | 165W | 220w | ||||
Luminous Flux | 14850lm | 18225lm | 22275lm | 22275lm | 29700lm | ||||
Efficiency | 135lm/w | 135lm/w | 135lm/w | 135lm/w | 135lm/w | ||||
Dimensions | 23.8*12.6*1.89" | 23.8*12.6*1.89" | 23.8*12.6*1.89" | 45.9*12.6*1.89" | 45.9*12.6*1.89" | ||||
Input Voltage | AC100-277V , AC100-347V , AC277-480V | 120lm/w | 120lm/w | 120lm/w | |||||
Dimming Type | 0-10V dimming | ||||||||
Optional | Microwave Sensor or emergency power | ||||||||
Packing size | 65.5*19*38.5cm 2pcs/ctn | 65.5*19*38.5cm 2pcs/ctn | 65.5*19*38.5cm 2pcs/ctn | 65.5*19*50.5cm 2pcs/ctn | 65.5*19*50.5cm 2pcs/ctn |
